Product Introduction
LYLR2 series Early Steamer Emission Lightning Rods are the preferred protection method for mega-structures such as distribution warehouses, industrial plants, amusement parks, shopping malls, sports arenas, golf courses, and other large area structures. The ESE system provides a safe and efficient manner of controlling dangerous lightning energy before it damages structures and its important contents, including human occupants. Our Early Steamer Emission Lightning Rods are made of non-corrosive materials, utilize advanced and sustainable technologies, are independently tested accordance with NF C 17-102 standard.

Characteristics
1、NF C 17-102 tested
2、Reliable performance in all weather conditions
3、Suitable for corrosive environments
4、Economical and easy to install
5、No internal electronics or power supply

Technical Specifications

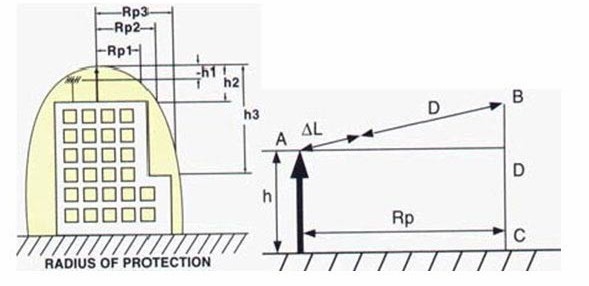

The Standard protection radius Rp is linked (according to NF C 17-102 standard) to △T, to protection levels I, II, III, or IV and to the height of the ESEs above the protected structure (H, defined by NF C 17-102 standard as a minimum of 2m). The NF C 17-102 standard includes four levels of protection.

Rp
Model	H（m）
	2	3	4	5	7
level I
LYLR2-3000	19	28	37	47	47
LYLR2-4500	25	38	51	63	64
LYLR2-6000	31	47	63	79	79
level II
LYLR2-3000	24	36	49	62	63
LYLR2-4500	32	48	64	81	82
LYLR2-6000	39	58	78	97	98
level III
LYLR2-3000	27	41	55	69	70
LYLR2-4500	36	54	72	89	91
LYLR2-6000	43	64	85	107	108
